003N4150 - Danfoss AVTA 25 Stainless Steel Thermostatically Operated Valve - M and M Controls
£816.65
£680.54
SKU/MPN
003N4150
Availability: See "More Information" below

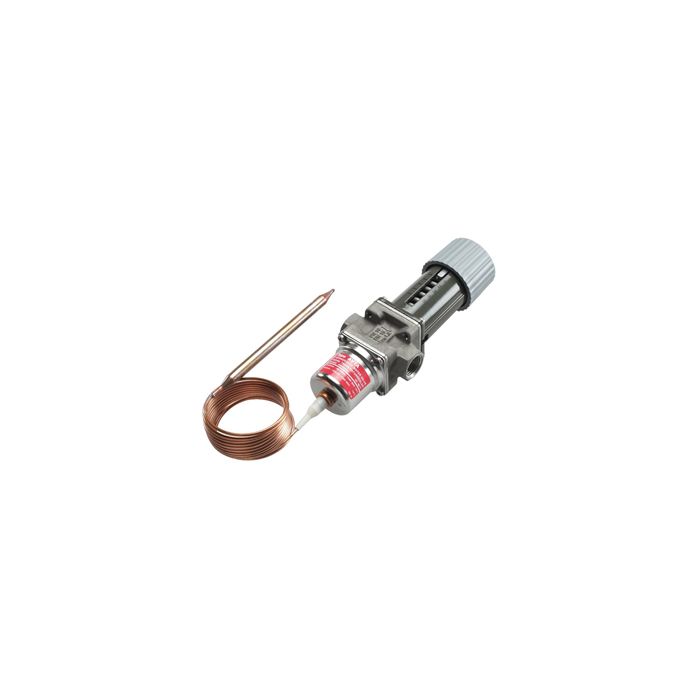

003N4150 - Danfoss AVTA 25 Stainless Steel Thermostatically Operated Valve
Sensor Temperature Range: 10 to 80°C
Medium Temperature Range: -25 to 130°C
Pipe Connection: 1 bsp
Orifice Size: 25mm
Body Material: Stainless Steel
Charge: Adsorption
Capillary Tube Length: 2.3M
Sensor Temperature Range: 10 to 80°C
Medium Temperature Range: -25 to 130°C
Pipe Connection: 1 bsp
Orifice Size: 25mm
Body Material: Stainless Steel
Charge: Adsorption
Capillary Tube Length: 2.3M
The charge of a 003N4150 AVTA 25 Thermostatic valve 10-80°C consists of active carbon and CO2 which is adsorbed on falling sensor temperature and thereby produce pressure changes in the element.
• Wide regulating range
• Can be installed in any position as far as orientation and - temperature are concerned
• Withstands up to +130oC sensor temperature
• Small sensor dimensions - Ø 9,5 x 160 mm
• Max. pressure on sensor 25 bar.
| Price Ex VAT | £680.54 |
|---|---|
| Product Name | 003N4150 AVTA 25 Danfoss Thermostatic valve 10-80°C |
| SKU/MPN | 003N4150 |
| Product Code | AVTA25 |
| Stock Status | Usually Ships in 2 weeks |
| Timed Deliveries | PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent |
| Weight KG | 1.600000 |
| GTIN/UPC/EAN | 5702423104772 |
| Tariff code | 8481 8059 |
| Brand | DANFOSS |
| Country of Origin | (EU) |
| UK Shipping Ex. VAT | £8.50 |
