003N2182 - Danfoss AVTA 15 Thermostatically Operated Valve - M and M Controls
£274.15
£228.46
SKU/MPN
003N2182
Availability: See "More Information" below

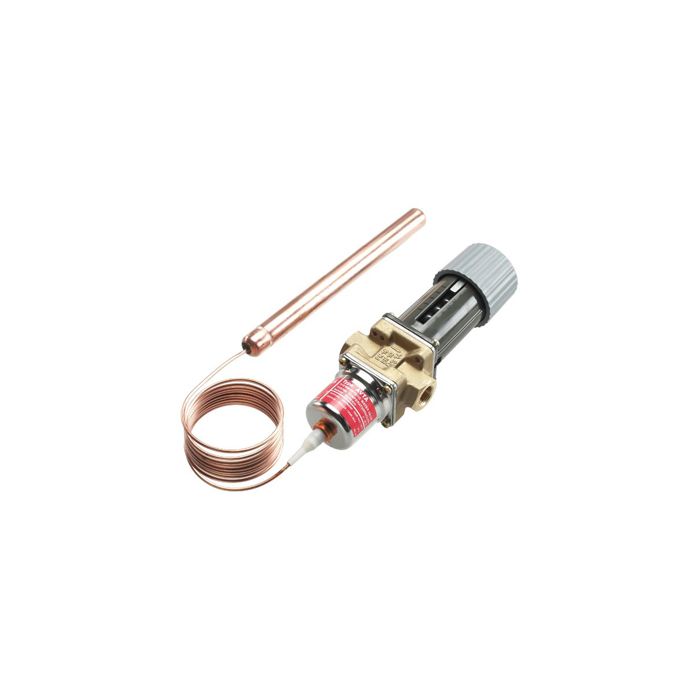

003N2182 - Danfoss AVTA 15 Thermostatically Operated Valve
Sensor Temperature Range: 50 to 90°C
Medium Temperature Range: -25 to 130°C
Pipe Connection: 1/2 bsp
Orifice Size: 15mm
Body Material: Brass
Charge: Universal
Capillary Tube Length: 2M
Sensor Temperature Range: 50 to 90°C
Medium Temperature Range: -25 to 130°C
Pipe Connection: 1/2 bsp
Orifice Size: 15mm
Body Material: Brass
Charge: Universal
Capillary Tube Length: 2M
The charge of a 003N2182 AVTA 15 Thermostatic valve 50-90C is a mix of liquid and gas where the liquid surface (regulating point) is always inside the sensor. Which charge medium is used depends on the regulation range.
• Sensor dimensions Ø 18 x 210 mm
• Sensor can be installed colder or warmer than the valve
• Sensors must be installed horizontally or with the free end pointing down-wards.
• Max. pressure on sensor 25 bar.
| Price Ex VAT | £228.46 |
|---|---|
| Product Name | 003N2182 AVTA 15 Danfoss Thermostatic valve 50-90C |
| SKU/MPN | 003N2182 |
| Product Code | AVTA15 |
| Stock Status | Usually Ships Sameday |
| Timed Deliveries | Timed Deliveries Available On This Product |
| Weight KG | 1.600000 |
| GTIN/UPC/EAN | 5702423023127 |
| Tariff code | 8481 8059 |
| Brand | DANFOSS |
| Country of Origin | (EU) |
| UK Shipping Ex. VAT | £8.50 |
